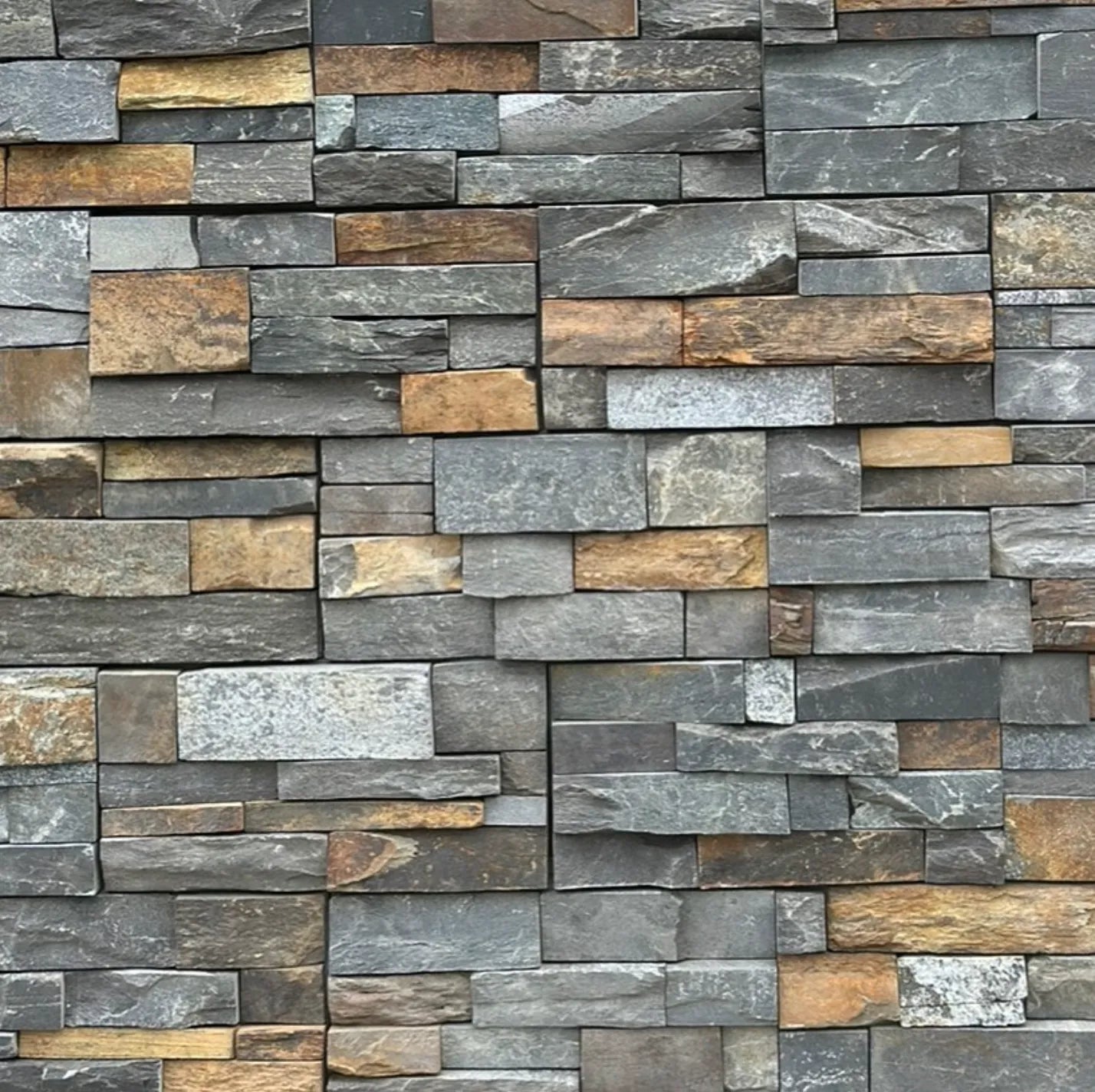

Our Grampians Interlocking Block by Blocsmart is a natural bluestone and concrete interlocking walling system that is used with Blocsmart Capping. Crafted with a 100% natural stone veneer, these modular concrete blocks have a simple rebate joint which make it easy to render, with no moisture lines from mortar joints. You can now achieve the work of a skilled stone mason effortlessly. Designed for easy integration, these cap blocks add protection against the elements while maintaining a clean, polished look.
Grampians Interlocking Blocks Specifications
- Block Sizes:
- Width/Depth: 165mm
- Internal: 100mm

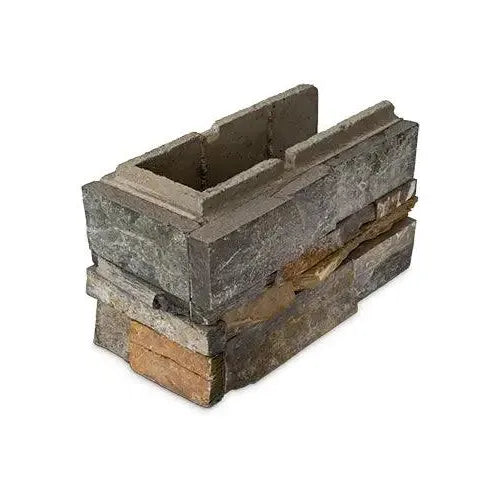

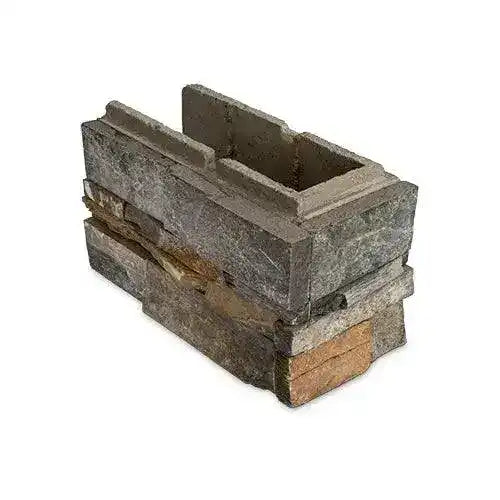

- Full Block: L 405 x W 165 x H 205 - Units per m2: 12.05

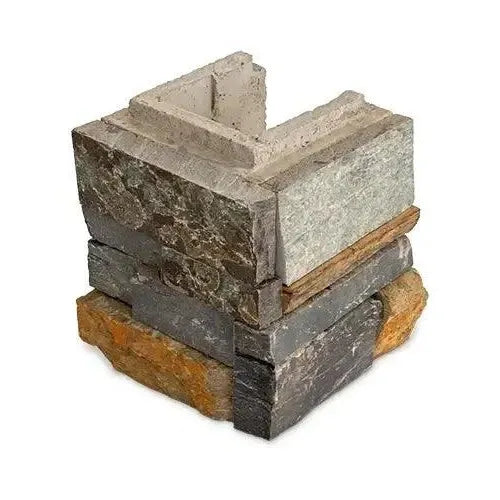

- Full Corner Right: - L 363 x W 165 x H 205 - Units per m2: 9.26
- Full Corner Left: L 363 x W 165 x H 205 - Units per m2: 9.26
- Half Block: L 202 x W 165 x H 205 - Units per m2: 24.39
- Half Corner Right: L 165 x W 165 x H 205 - Units per m2: 14.71
- Half Corner Left: L 165 x W 165 x H 205 - Units per m2: 14.71
- Standards
- Material:
- Concrete
Our Interlocking Blocks are simple to install and will easily stack together, their large face size and dry stack system can reduce construction time by up to 75% over traditional methods. Saving you time and money.
Grampians Interlocking Block Applications
- Steps and stairs
- Pillars
- Letterboxes
- Retaining Walls
- Fencing
Council Requirements
When planning to build a retaining wall it is always recommended to contact your local council for any information or planning approvals.
- Brisbane City Council Building a retaining wall
- Ipswich City Council Building and development compliance
- Gold Coast Council – Retaining walls
- Toowoomba – Building approvals and heights for retaining walls
- Moreton Bay Regional Council – Building approval
- Logan City Council – Building Approvals Fact Sheet
- Redlands City Council – Minor building projects
- Sunshine Coast Council – Property fences and retaining walls
